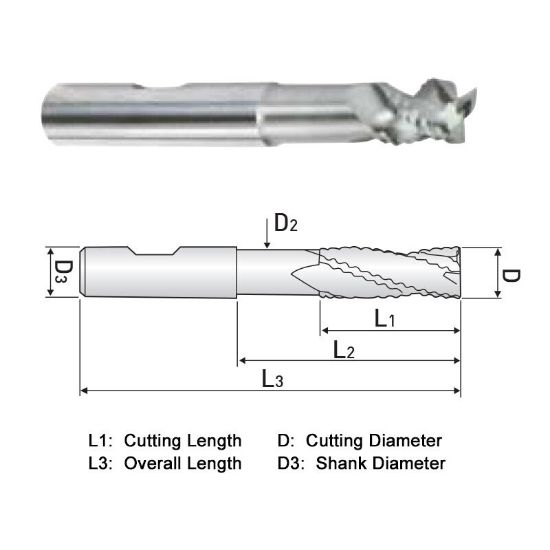

WIDIN WAF313A064 DIA 1 SH 1.00 LOC 0.9375 OAL 6.00 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF313A064
Delivery date: 3-5 days
$430.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Side Milling, Face Milling, Slot Milling
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Length Type Standard
Helix Angle 38°
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Overall Len 6.0000 152.40MM
Length Of Cut 0.9375 23.81MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
