WIDIN WAF313A024 DIA 3/8 SH 0.3750 LOC 0.4375 OAL 3.50 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF313A024
Delivery date: 3-5 days
$62.80

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Illinois
Application Side Milling, Face Milling, Slot Milling
Made In USA No
Package Size 1

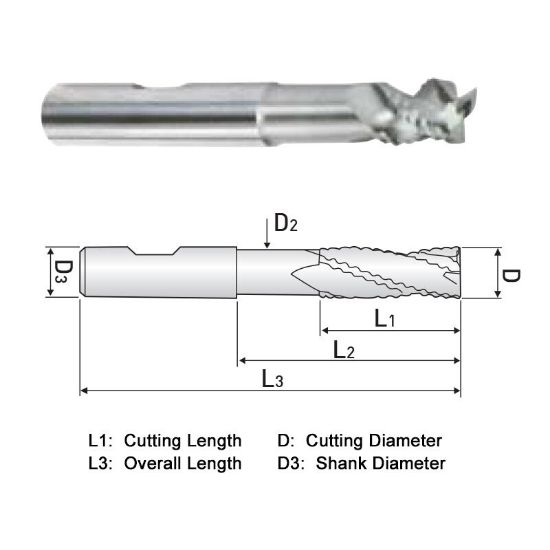

Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Length Of Cut 0.4375 11.11MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Helix Angle 38°
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Agricultural YES
