WIDIN WAF303A032 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303A032
Delivery date: 3-5 days
$66.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Slot Milling, Face Milling
Shipping State Illinois
Made In USA No
Package Size 1

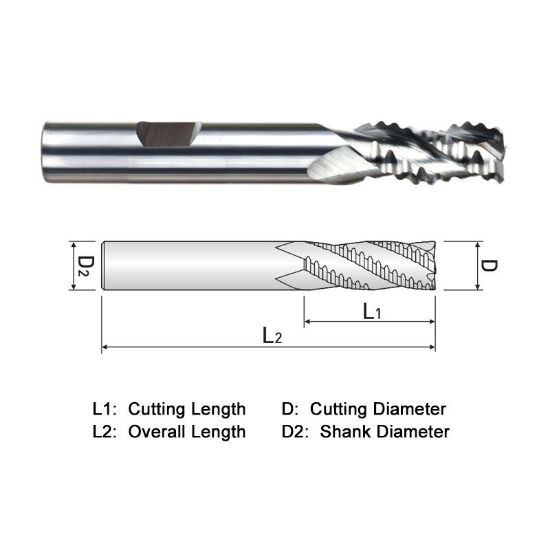

Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Carbide Rougher
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 38°
Length Of Cut 1.2500 31.75MM
Length Type Standard
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
