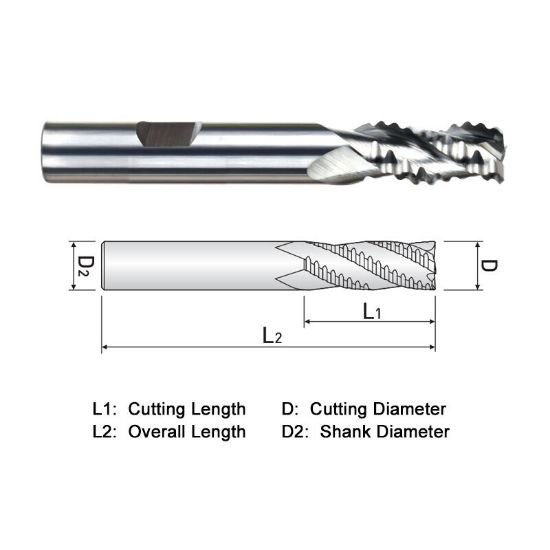

Picture of Widin WAF303A024 Dia 3/8 SH 0.3750 LOC 1.00 OAL3.00 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Widin WAF303A024 Dia 3/8 SH 0.3750 LOC 1.00 OAL3.00 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Part Number: WIDWAF303A024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218102
Vendor: Sussex Tool and Supply
$63.31
WIDIN End Mill Carbide Uncoated Square Sharp Flutes 3 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
