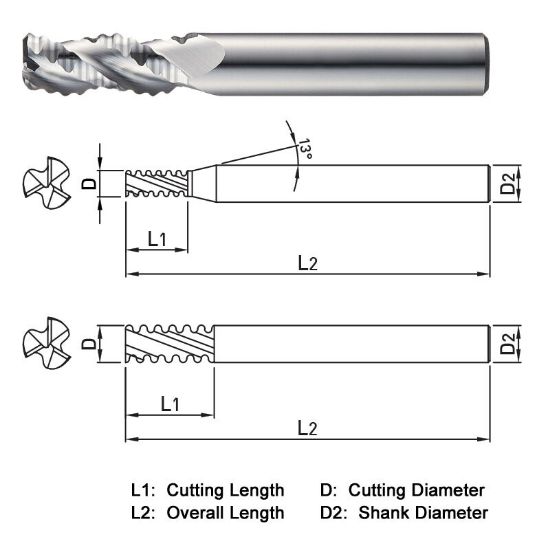

WIDIN WAF303180 DIA 18MM SH 0.7087 LOC 1.2598 OAL 3.6220 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303180
Delivery date: 3-5 days
$224.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Weldon
Length Of Cut 1.2600 32.00MM
Length Type Standard
Helix Angle 38°
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.7087 18.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Machine Side Connection Size 0.7087 18.00MM
Shank/Pilot Dia 0.7087 18.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 3
Overall Len 3.6220 92.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
