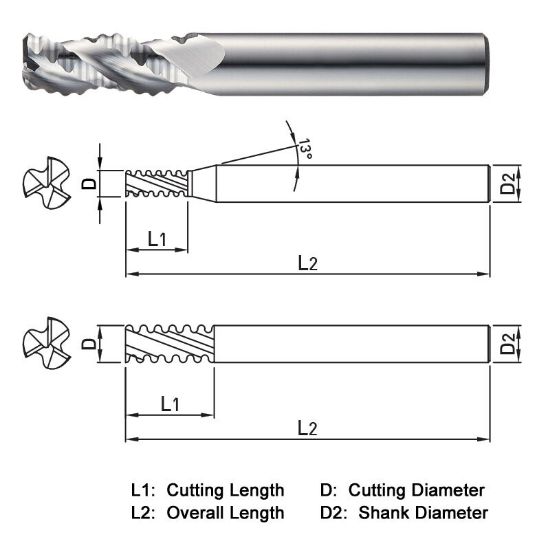

WIDIN WAF303161 DIA 16MM SH 0.6299 LOC 2.0472 OAL 5.9055 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303161
Delivery date: 3-5 days
$195.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Square
Machine Side Connection Type Weldon
Length Type Standard
Helix Angle 38°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Overall Len 5.9055 150.00MM
Cutter Style Carbide Rougher
Shank/Pilot Dia 0.6299 16.00MM
Length Of Cut 2.0472 52.00MM
Inch/Metric Metric
Machine Side Connection Size 0.6299 16.00MM
Single/Double End Single End
Cutter Dia 0.6299 16.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
