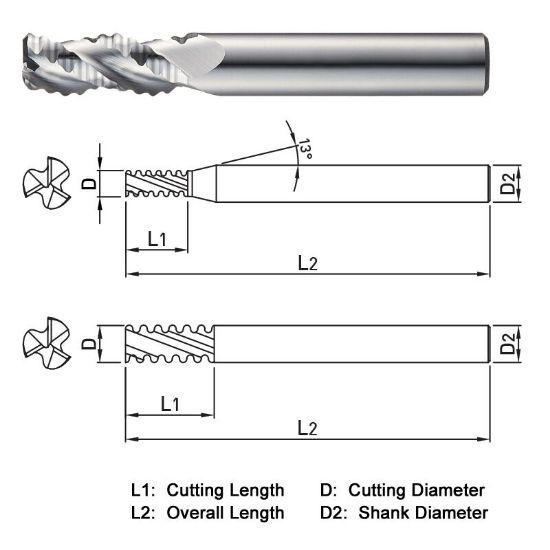

WIDIN WAF303121 DIA 12MM SH 0.4724 LOC 1.9685 OAL 4.3307 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303121
Delivery date: 3-5 days
$83.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.3307 110.00MM
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Rougher
Length Type Standard
Helix Angle 38°
Single/Double End Single End
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.4724 12.00MM
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
Length Of Cut 1.9685 50.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
