WIDIN WAF303120 DIA 12MM SH 0.4724 LOC 1.1811 OAL 3.1496 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303120
Delivery date: 3-5 days
$63.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Slot Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1

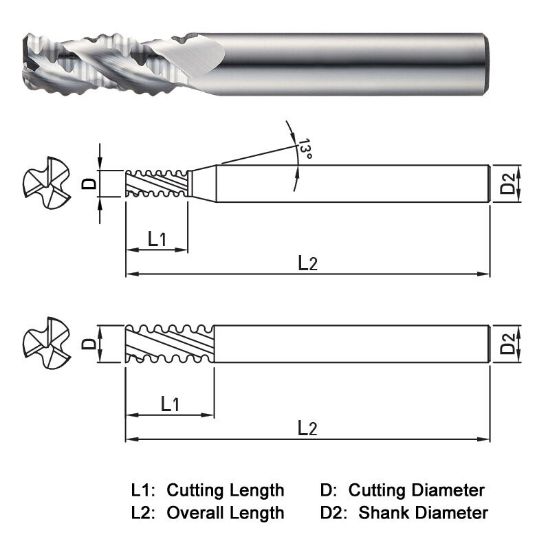

Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Rougher
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.1496 80.00MM
Single/Double End Single End
Length Type Standard
Helix Angle 38°
Machine Side Connection Size 0.4724 12.00MM
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
