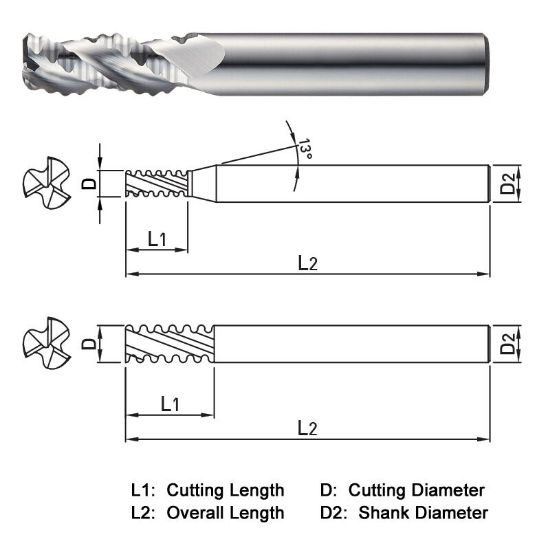

WIDIN WAF303100 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.9528 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303100
Delivery date: 3-5 days
$47.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Length Type Standard
Helix Angle 38°
Flutes/Inserts 3
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.9843 25.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Machine Side Connection Size 0.3937 10.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Weldon
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
