WIDIN WAF303081 DIA 8MM SH 0.3150 LOC 1.1811 OAL 3.5433 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303081
Delivery date: 3-5 days
$41.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance

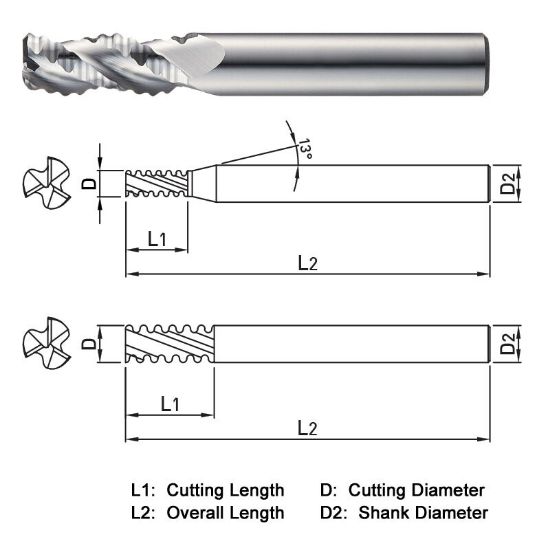

Dimensional Specifications
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 3.5433 90.00MM
Single/Double End Single End
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Dia 0.3150 8.00MM
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Length Type Standard
Helix Angle 38°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Carbide Rougher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
