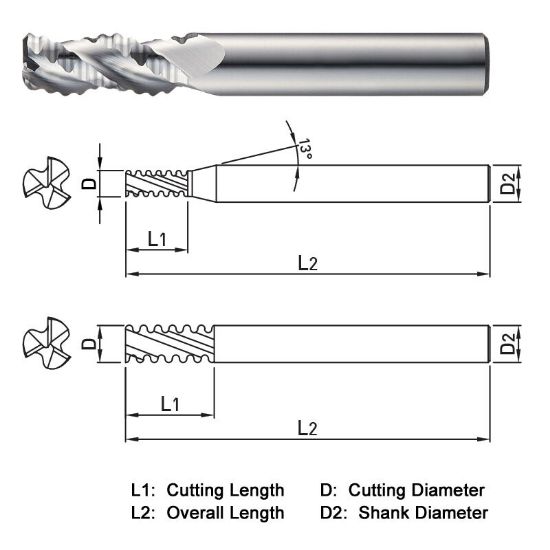

WIDIN WAF303080 DIA 8MM SH 0.3150 LOC 0.7874 OAL 2.5591 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAF303080
Delivery date: 3-5 days
$34.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Single/Double End Single End
Length Type Standard
Helix Angle 38°
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.3150 8.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Overall Len 2.5591 65.00MM
Flutes/Inserts 3
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Cutter Dia 0.3150 8.00MM
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
