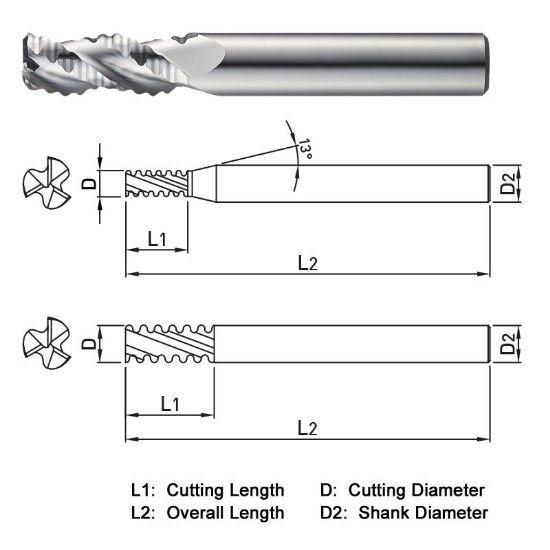

Picture of Widin WAF303061 Dia 6mm SH 0.2362 LOC 0.9843 OAL3.1496 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Widin WAF303061 Dia 6mm SH 0.2362 LOC 0.9843 OAL3.1496 End Mill Carbide Uncoated Single End Square Sharp ALU-WAVE

Part Number: WIDWAF303061

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218086
Vendor: Sussex Tool and Supply
$40.99
WIDIN End Mill Carbide Uncoated Square Sharp Flutes 3 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.2362 6.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.9843 25.00MM
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 38
Center Cutting Center Cutting
