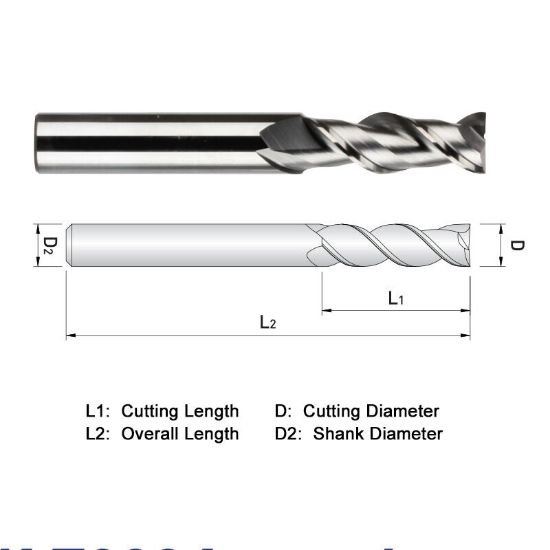

Picture of Widin WAE522A016 Dia 1/4 SH 0.2500 LOC 1.50 OAL4.00 End Mill Standard Flute High Helix Carbide DLC Single End Square Sharp ALU-WAVE

Widin WAE522A016 Dia 1/4 SH 0.2500 LOC 1.50 OAL4.00 End Mill Standard Flute High Helix Carbide DLC Single End Square Sharp ALU-WAVE

Part Number: WIDWAE522A016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1218068
Vendor: Sussex Tool and Supply
$38.23
WIDIN High Helix End Mill Carbide DLC Square Sharp Standard Flute Flutes 2 Single End ALU-WAVE Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating DLC
Mach Side Connection Size 0.2500 6.35MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type LONG
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
