WIDIN WAE323080 DIA 8MM SH 0.3150 LOC 1.6142 OAL 3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE323080
Delivery date: 3-5 days
$34.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Made In USA No
Application Face Milling, Slot Milling, Side Milling

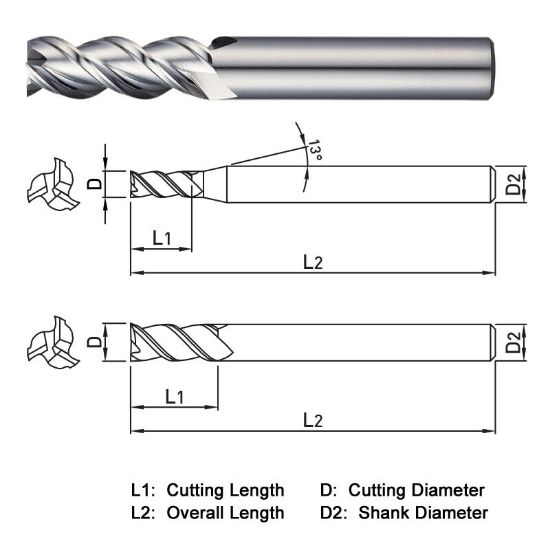

Dimensional Specifications
Helix Angle 45°
Cutter Dia 0.3150 8.00MM
Overall Len 3.5433 90.00MM
Length Type Long
Inch/Metric Metric
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.3150 8.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Length Of Cut 1.6142 41.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
