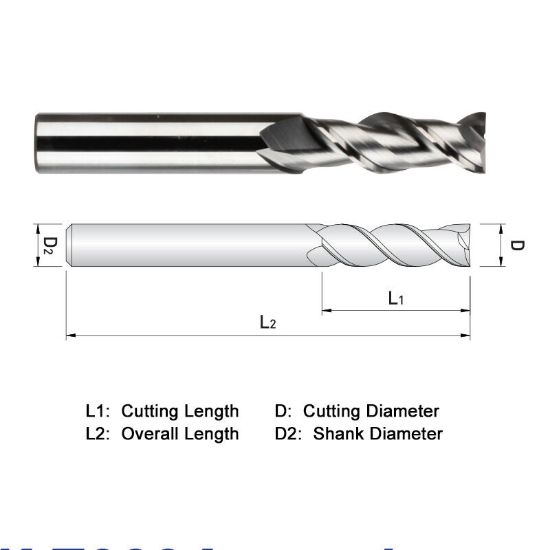

WIDIN WAE322A040 DIA 5/8 SH 0.6250 LOC 2.50 OAL 5.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE322A040
Delivery date: 3-5 days
$138.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Application Side Milling, Slot Milling, Face Milling
Package Size 1
Dimensional Specifications
Length Of Cut 2.5000 63.50MM
End Of Tool Shape Square
Overall Len 5.0000 127.00MM
Flutes/Inserts 2
Length Type Long
Cutter Dia 0.6250 15.88MM - 5/8
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
