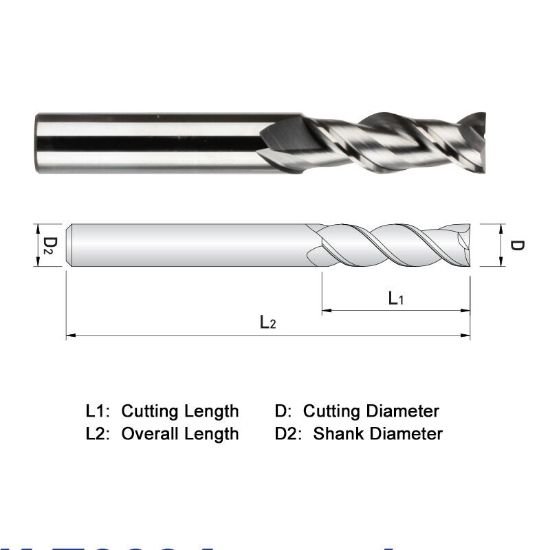

Picture of Widin WAE322A024 Dia 3/8 SH 0.3750 LOC 1.50 OAL4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Widin WAE322A024 Dia 3/8 SH 0.3750 LOC 1.50 OAL4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Part Number: WIDWAE322A024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1217979
Vendor: Sussex Tool and Supply
$49.83
WIDIN High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 2 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3750 9.53MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type LONG
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
