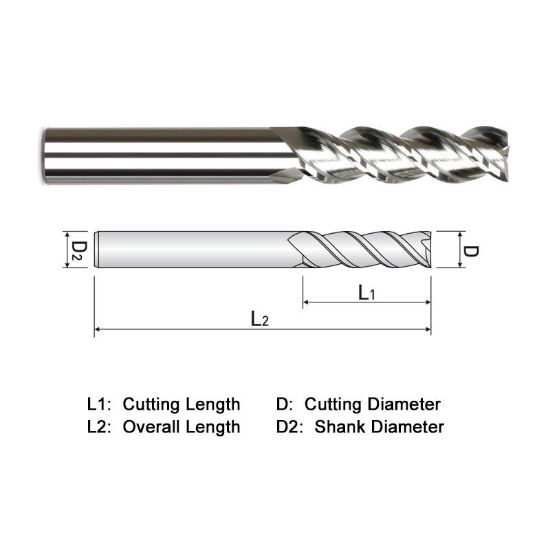

WIDIN WAE313A032 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE313A032
Delivery date: 3-5 days
$49.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 1.2500 31.75MM
Overall Len 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
