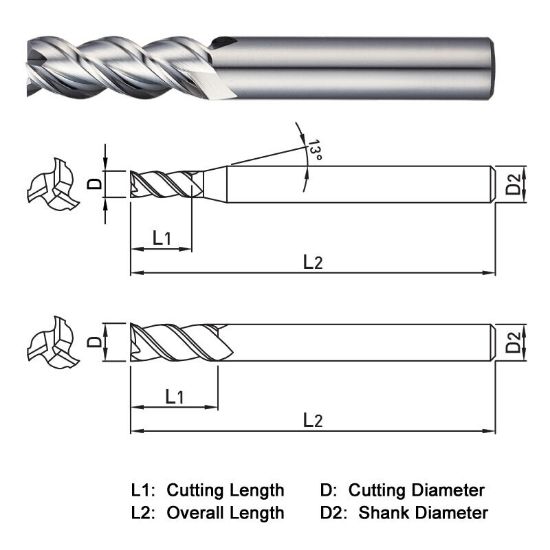

WIDIN WAE303120 DIA 12MM SH 0.4724 LOC 1.2992 OAL 3.1496 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE303120
Delivery date: 3-5 days
$48.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 3.1496 80.00MM
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Single/Double End Single End
Length Of Cut 1.2992 33.00MM
Length Type Extra Long
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.4724 12.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Helix Angle 45°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
