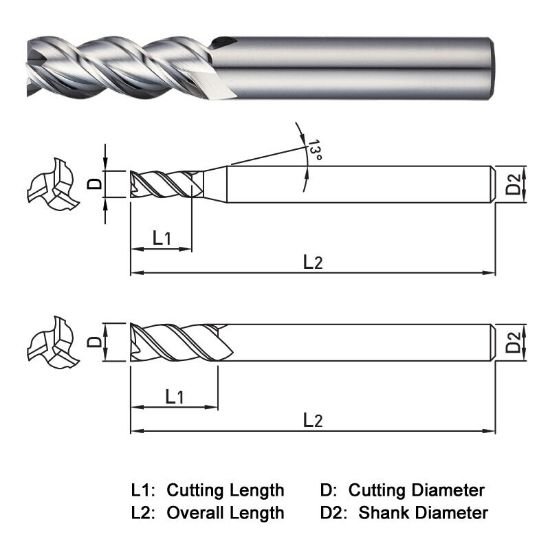

Picture of Widin WAE303100-33 Dia 10mm SH 0.3937 LOC 1.2992 OAL3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Widin WAE303100-33 Dia 10mm SH 0.3937 LOC 1.2992 OAL3.5433 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Part Number: WIDWAE303100-33

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1217912
Vendor: Sussex Tool and Supply
$53.02
WIDIN High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 3 Single End ALU-WAVE Carbide
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3937 10.00MM
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3937 10.00MM
Length Type Extra Long
Performance Rating High Performance
Length Of Cut 1.2992 33.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 45
Center Cutting Center Cutting
