WIDIN WAE302060 DIA 6MM SH 0.2362 LOC 0.6693 OAL 2.3622 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE302060
Delivery date: 3-5 days
$19.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical

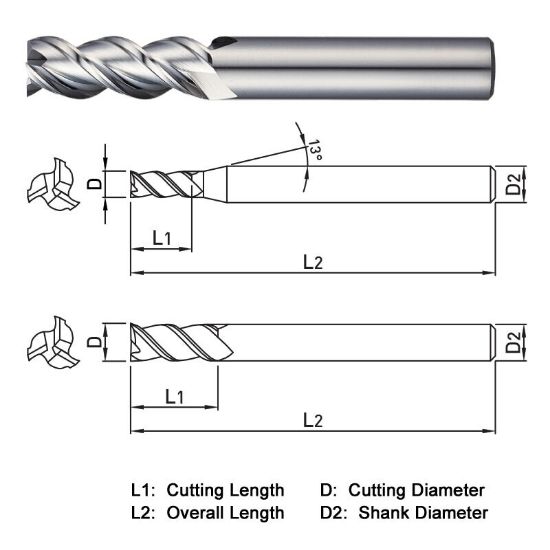

Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
Cutter Dia 0.2362 6.00MM
Overall Len 2.3622 60.00MM
Helix Angle 45°
Length Of Cut 0.6693 17.00MM
Single/Double End Single End
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Flutes/Inserts 2
Inch/Metric Metric
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
