WIDIN WAE301100-30 DIA 10MM SH 0.3937 LOC 1.1811 OAL 3.1496 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE301100-30
Delivery date: 3-5 days
$50.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 1

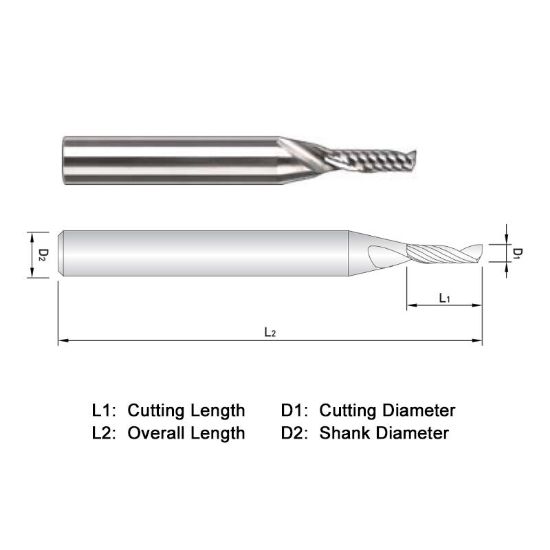

Dimensional Specifications
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.1496 80.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Flutes/Inserts 1
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
