WIDIN WAE301009 DIA 0.90MM SH 0.1575 LOC 0.1063 OAL 1.574 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE301009
Delivery date: 3-5 days
$19.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Package Size 1

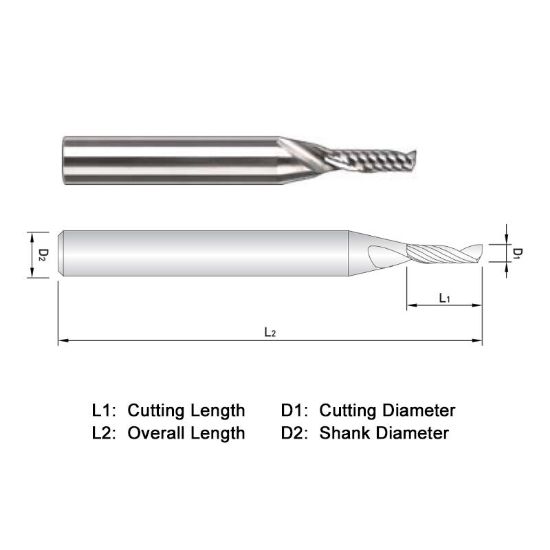

Dimensional Specifications
Shank/Pilot Dia 0.1574 4.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutter Dia 0.0354 0.90MM
Flutes/Inserts 1
Length Of Cut 0.1063 2.70MM
Length Type Standard
Inch/Metric Metric
End Of Tool Shape Square
Machine Side Connection Size 0.1575 4.00MM
Overall Len 1.5748 40.00MM
Helix Angle 45°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
