WIDIN WAE301008 DIA 0.80MM SH 0.1575 LOC 0.0945 OAL 1.574 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE301008
Delivery date: 3-5 days
$19.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Shipping State Illinois
Performance Rating High Performance
Package Size 1

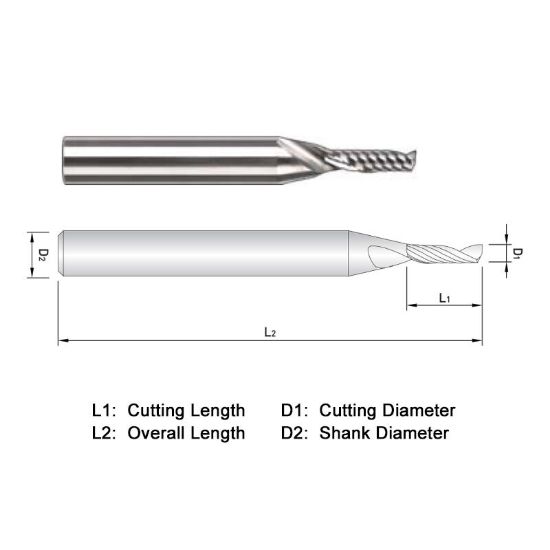

Dimensional Specifications
Flutes/Inserts 1
Length Type Standard
Shank/Pilot Dia 0.1574 4.00MM
Length Of Cut 0.0945 2.40MM
Cutter Dia 0.0315 0.80MM
Machine Side Connection Size 0.1575 4.00MM
Overall Len 1.5748 40.00MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
