WIDIN WAE301004 DIA 0.40MM SH 0.1575 LOC 0.0472 OAL 1.574 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAE301004
Delivery date: 3-5 days
$22.16

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Performance Rating High Performance
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA No

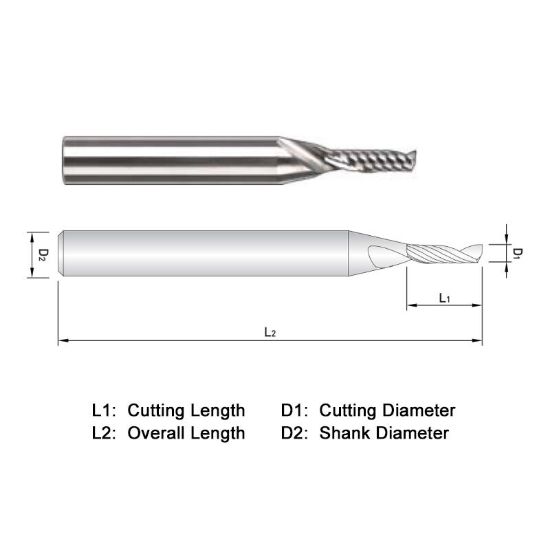

Dimensional Specifications
Machine Side Connection Size 0.1575 4.00MM
Overall Len 1.5748 40.00MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Length Of Cut 0.0472 1.20MM
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.0157 0.40MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 1
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
