WIDIN WAB312161 DIA 16MM SH 0.6299 LOC 0.6299 OAL 5.9055 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAB312161
Delivery date: 3-5 days
$265.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois

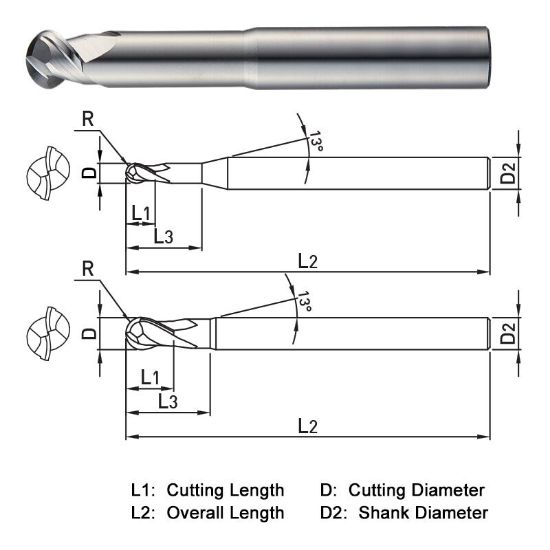

Dimensional Specifications
Length Of Cut 0.6300 16.00MM
Single/Double End Single End
Neck Length 0.9843 25.00MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Style Carbide Ball Finisher
Flutes/Inserts 2
Inch/Metric Metric
Cutter Dia 0.6299 16.00MM
End Of Tool Shape Ball Nose
Helix Angle 45°
Length Type Stub / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
