WIDIN WAB312122 DIA 12MM SH 0.4724 LOC 0.4724 OAL 5.9055 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAB312122
Delivery date: 3-5 days
$182.11

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois

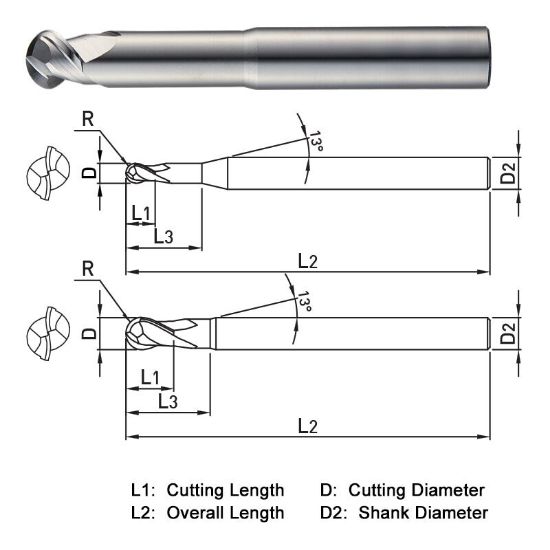

Dimensional Specifications
Helix Angle 45°
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Length Of Cut 0.4724 12.00MM
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 5.9055 150.00MM
Cutter Dia 0.4724 12.00MM
End Of Tool Shape Ball Nose
Neck Length 0.9843 25.00MM
Length Type Stub / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
