WIDIN WAB312101 DIA 10MM SH 0.3937 LOC 0.3937 OAL 3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAB312101
Delivery date: 3-5 days
$104.77

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Side Milling, Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating High Performance

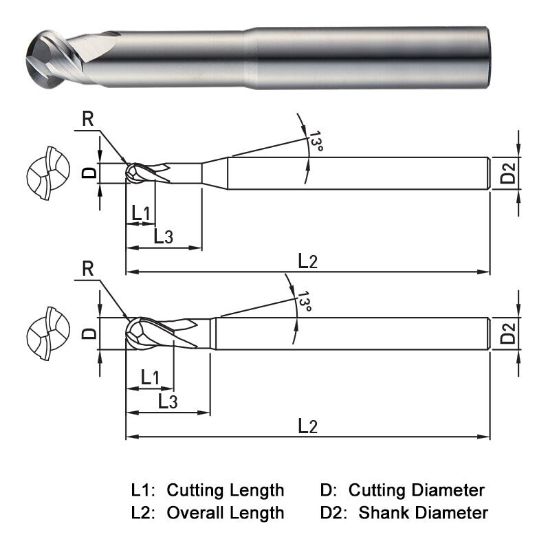

Dimensional Specifications
End Of Tool Shape Ball Nose
Overall Len 3.9370 100.00MM
Length Of Cut 0.3937 10.00MM
Cutter Dia 0.3937 10.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Inch/Metric Metric
Neck Length 0.9843 25.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.3937 10.00MM
Length Type Stub / With Neck
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
