WIDIN WAB312100 DIA 10MM SH 0.3937 LOC 0.3346 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose ALU-WAVE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDWAB312100
Delivery date: 3-5 days
$73.77

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois

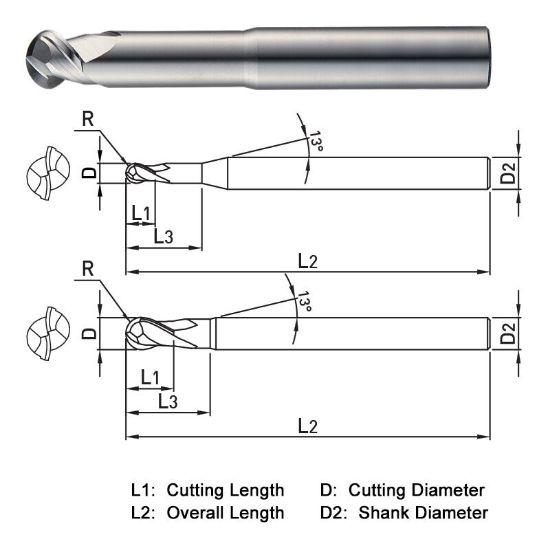

Dimensional Specifications
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 2.9528 75.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3937 10.00MM
End Of Tool Shape Ball Nose
Helix Angle 45°
Flutes/Inserts 2
Length Of Cut 0.3346 8.50MM
Inch/Metric Metric
Length Type Stub / With Neck
Neck Length 0.9843 25.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
