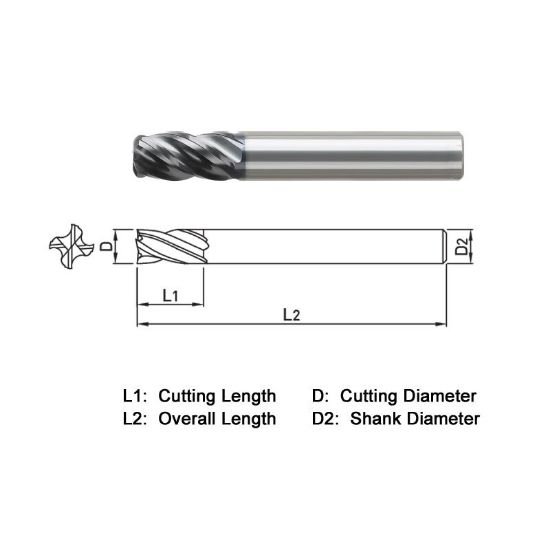

Picture of Widin VXR526A032125N Dia 1/2 SH 0.50 LOC 0.6250 OAL 5.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.1250 3.18mm VH Series

Widin VXR526A032125N Dia 1/2 SH 0.50 LOC 0.6250 OAL 5.00 End Mill Variable Helix Carbide TiAlN Single End Corner Radius0.1250 3.18mm VH Series

Part Number: WIDVXR526A032125N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$139.69
SKU: 1229775

Description

WIDIN Variable Helix End Mill Carbide TiAlN Corner Radius 0.1250 3.18MM 6 Flute Single End VH SERIES
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 6
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.6250 15.88MM
Neck Length 3.1250 79.38MM
Geometry & Angles
Corner Radius 0.1250 3.18MM
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
