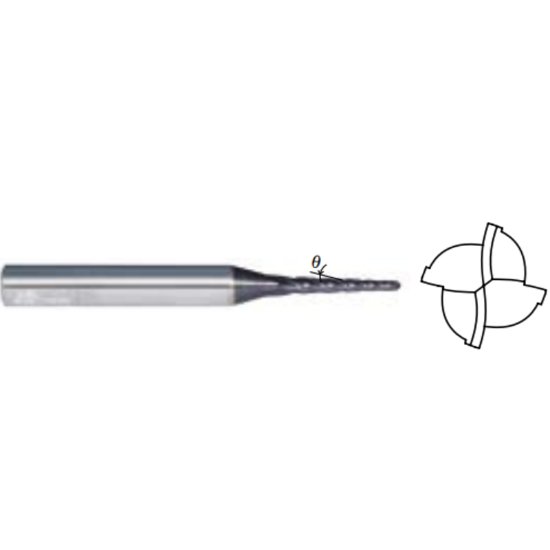

Picture of Widin TPRB624A-0060-30 Dia 0.06 SH 0.1875 LOC 0.8400 OAL3.00 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall X-Star

Widin TPRB624A-0060-30 Dia 0.06 SH 0.1875 LOC 0.8400 OAL3.00 End Mill Taper Flute Carbide AlTiN Single End Ball NoseBall X-Star

Part Number: WIDTPRB624A-0060-30
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1220909
Vendor: Sussex Tool and Supply
$93.99

Description

WIDIN End Mill Carbide AlTiN Ball Nose Ball Taper Flute Flutes 4 Single End X-STAR Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Taper Flute Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.0600 1.52MM
Length Of Cut 0.8400 21.34MM
Geometry & Angles
Helix Angle 25
Taper Angle 3.0°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
