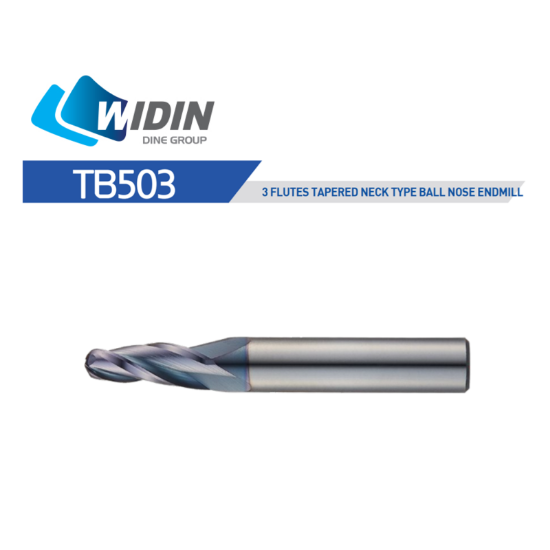

WIDIN TB50360520 DIA 12MM SH 0.7874 LOC 1.4173 OAL 3.9370 End Mill Taper Flute Carbide AlTiN Single End Ball Nose Z-CLASSIC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDTB50360520
Delivery date: 3-5 days
$339.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Taper Side Milling, Copy Milling, Face Milling
Made In USA No
Shipping State Illinois
Coating AlTiN
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Length Type Standard
Overall Len 3.9370 100.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron
Cutter Dia 0.4724 12.00MM
Machine Side Connection Size 0.7874 20.00MM
Helix Angle 30°
Flutes/Inserts 3
Length Of Cut 1.4173 36.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Inch/Metric Metric
Taper Angle 5.0°
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
