WIDIN SSD115 11.50MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD115
Delivery date: 3-5 days
$66.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Made In USA No
Shipping State Illinois

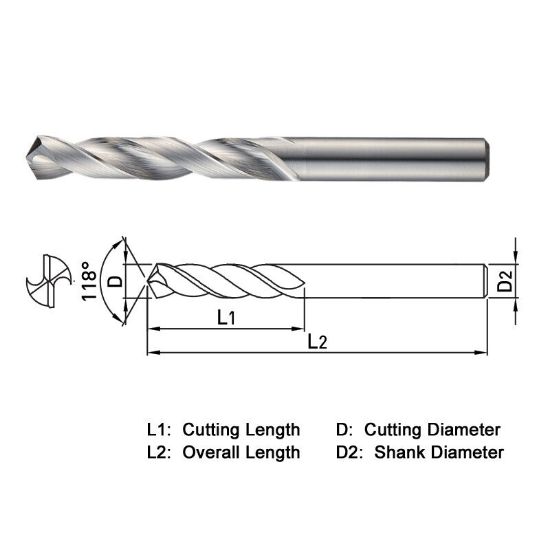

Dimensional Specifications
Cut Dia Min 0.4528 11.50MM
Tool Material Carbide
Included Angle 118°
Cutter Dia 0.4528 11.50MM
Flutes/Inserts 2
Flute Length 2.5590 65.00MM
Dia Deep 5.0XD
Cut Rating <25HRC Steel, Aluminium
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
