WIDIN SSD107 10.70MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD107
Delivery date: 3-5 days
$65.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Dilling, Drilling Flood Coolant
Shipping State Illinois
Package Size 1

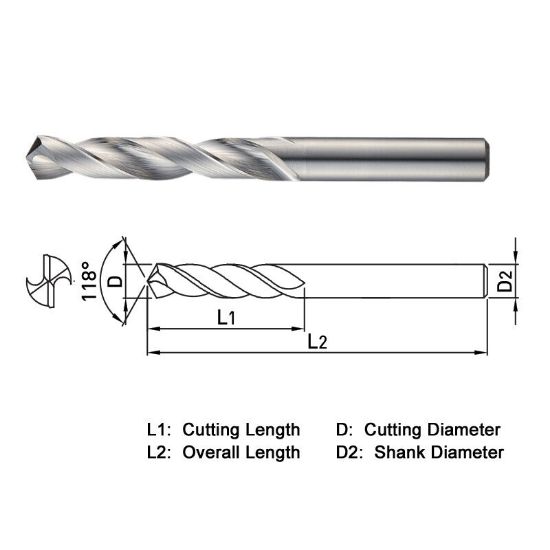

Dimensional Specifications
Cut Dia Min 0.4213 10.70MM
Overall Len 4.5276 115.00MM
Cutter Dia 0.4213 10.70MM
Flute Length 2.3620 59.99MM
Tool Material Carbide
Included Angle 118°
Cut Rating <25HRC Steel, Aluminium
Dia Deep 5.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
