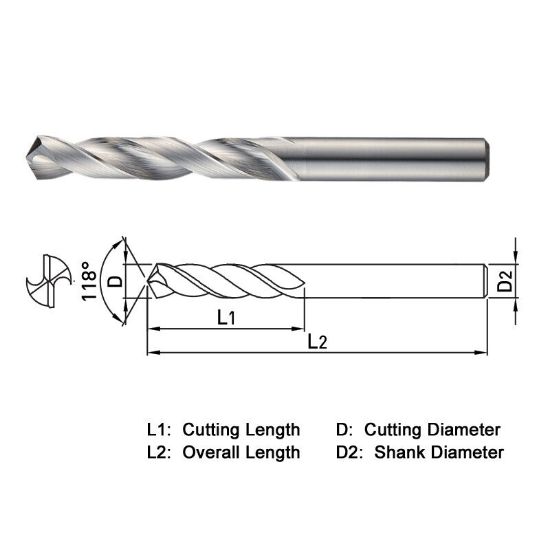

WIDIN SSD051 5.10MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD051
Delivery date: 3-5 days
$17.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Carbide
Flute Length 1.3780 35.00MM
Included Angle 118°
Cut Rating <25HRC Steel, Aluminium
Overall Len 2.5591 65.00MM
Dia Deep 5.0XD
Flutes/Inserts 2
Cutter Dia 0.2008 5.10MM
Cut Dia Min 0.2008 5.10MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
