WIDIN SSD021 2.10MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD021
Delivery date: 3-5 days
$8.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling Flood Coolant, Dilling
Shipping State Illinois
Made In USA No

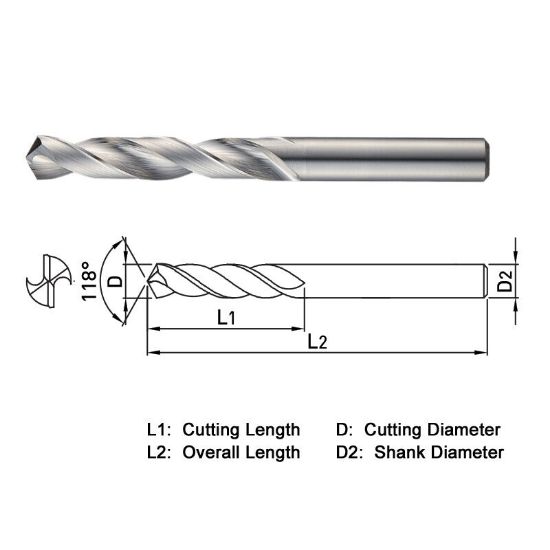

Dimensional Specifications
Cutter Dia 0.0827 2.10MM
Cut Rating <25HRC Steel, Aluminium
Cut Dia Min 0.0827 2.10MM
Overall Len 1.7717 45.00MM
Flute Length 0.6300 16.00MM
Tool Material Carbide
Included Angle 118°
Dia Deep 5.0XD
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
