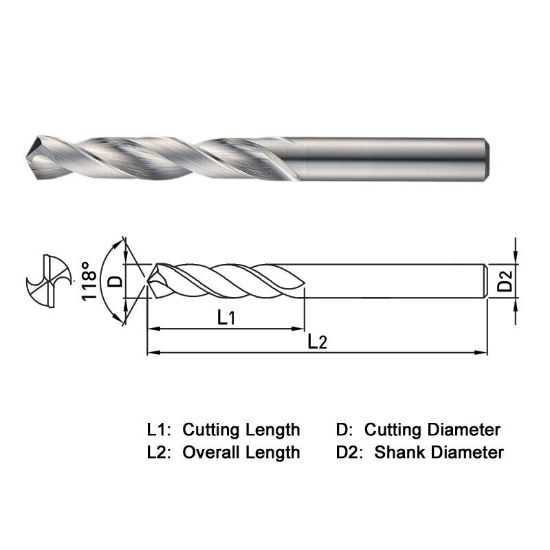

WIDIN SSD020 2.00MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD020
Delivery date: 3-5 days
$8.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating <25HRC Steel, Aluminium
Cut Dia Min 0.0787 2.00MM
Cutter Dia 0.0787 2.00MM
Included Angle 118°
Tool Material Carbide
Flute Length 0.6300 16.00MM
Dia Deep 5.0XD
Overall Len 1.7717 45.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
