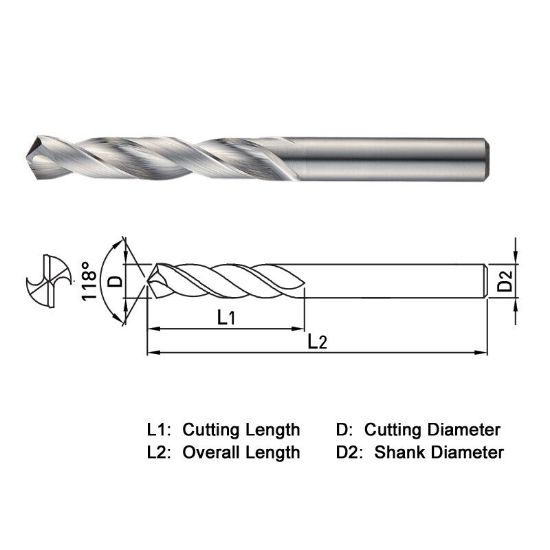

WIDIN SSD010 1.00MM DIA 118° Point 2 Flute 5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDSSD010
Delivery date: 3-5 days
$8.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Dilling, Drilling Flood Coolant
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 0.0394 1.00MM
Machine Side Connection Size 0.0400 1.02MM
Flutes/Inserts 2
Cut Rating <25HRC Steel, Aluminium
Length Of Cut 0.3937 10.00MM
Overall Len 1.4961 38.00MM
Dia Deep 5.0XD
Shank/Pilot Dia 0.0394 1.00MM
Cutter Dia 0.0394 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.3940 10.01MM
Included Angle 118°
Dimension Description 0.039 x 0.039 x 0.394 x 1.496
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
