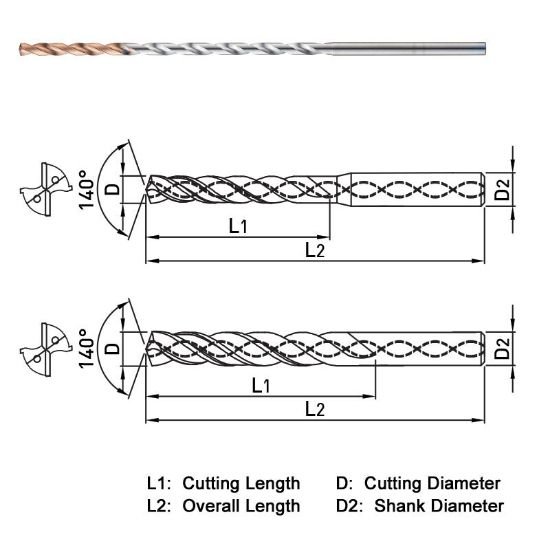

Picture of Widin SF520052 5.20mm Dia 140° Point 2 Flute 20XD Drill Carbide Thru Coolant

Widin SF520052 5.20mm Dia 140° Point 2 Flute 20XD Drill Carbide Thru Coolant

Part Number: WIDSF520052
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$232.71
SKU: 1143842

Description

WIDIN SF520052 Deep Hole Over 8Xd 5.20MM DIA 140° Point 2 Flute 20XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.0079 178.00MM
Flute Length 5.0000 127.00MM
Dia Deep 20.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.2047 5.20MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2047 5.20MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
