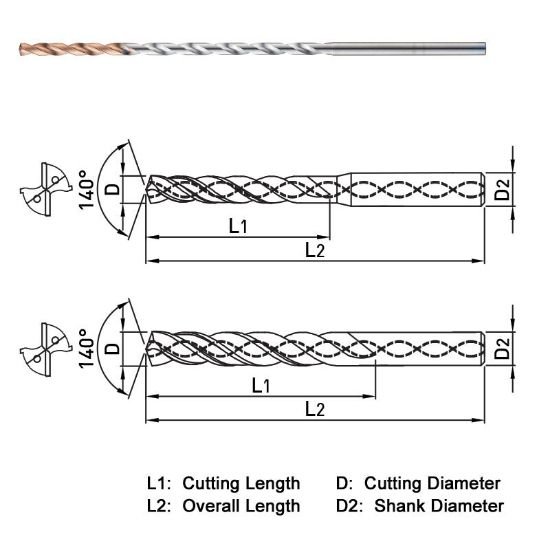

Picture of Widin SF520047 4.70mm Dia 140° Point 2 Flute 20XD Drill Carbide Thru Coolant

Widin SF520047 4.70mm Dia 140° Point 2 Flute 20XD Drill Carbide Thru Coolant

Part Number: WIDSF520047
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$180.54
SKU: 1143837

Description

WIDIN SF520047 Deep Hole Over 8Xd 4.70MM DIA 140° Point 2 Flute 20XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.5748 167.00MM
Flute Length 4.5670 116.00MM
Dia Deep 20.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.1969 5.00MM
Tool Dia 0.1850 4.70MM - #13
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1850 4.70MM - #13
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
