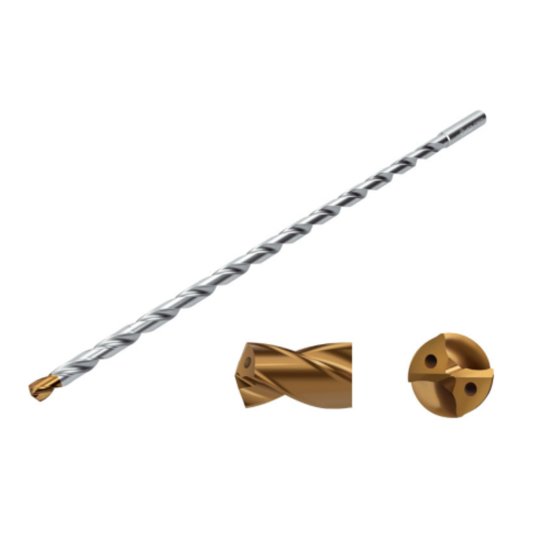

Picture of Widin SF51609525 9.525 - 3/8 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Widin SF51609525 9.525 - 3/8 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Part Number: WIDSF51609525
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$317.61
SKU: 1144310

Description

WIDIN SF51609525 Deep Hole Over 8Xd 9.525 - 3/8 DIA 140° Point 2 Flute 16XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.8189 224.00MM
Flute Length 6.4960 165.00MM
Dia Deep 16.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3750 9.53MM - 3/8
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3750 9.53MM - 3/8
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
