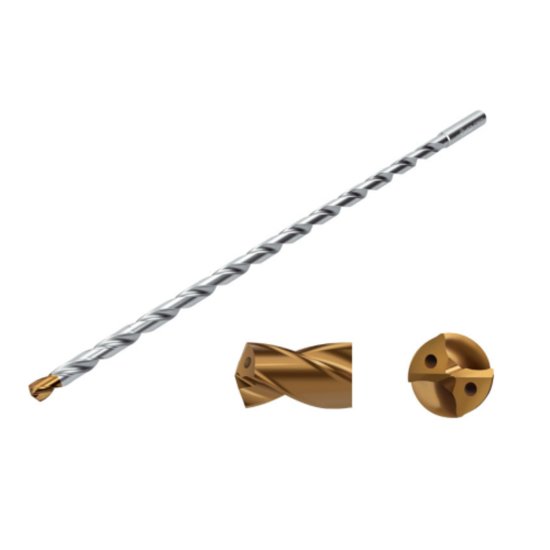

Picture of Widin SF516080 8.00mm Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Widin SF516080 8.00mm Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Part Number: WIDSF516080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$256.41
SKU: 1144309

Description

WIDIN SF516080 Deep Hole Over 8Xd 8.00MM DIA 140° Point 2 Flute 16XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.5591 192.00MM
Flute Length 5.5120 140.00MM
Dia Deep 16.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.3150 8.00MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3150 8.00MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
