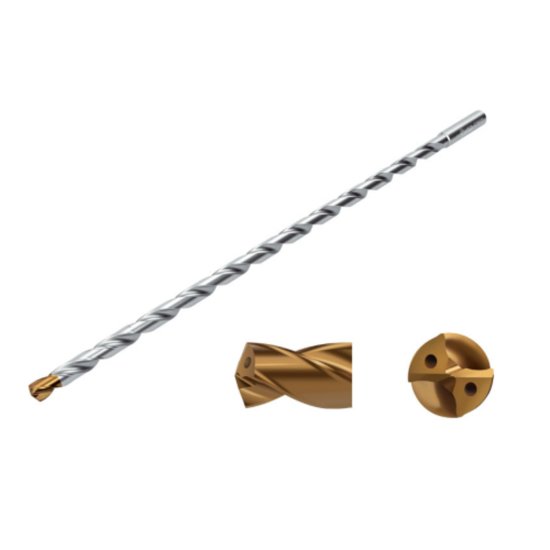

Picture of Widin SF5160635 6.35 - 1/4 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Widin SF5160635 6.35 - 1/4 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Part Number: WIDSF5160635
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$210.17
SKU: 1144308

Description

WIDIN SF5160635 Deep Hole Over 8Xd 6.35 - 1/4 DIA 140° Point 2 Flute 16XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.8898 175.00MM
Flute Length 4.8820 124.00MM
Dia Deep 16.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.2500 6.35MM - 1/4 - E
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
