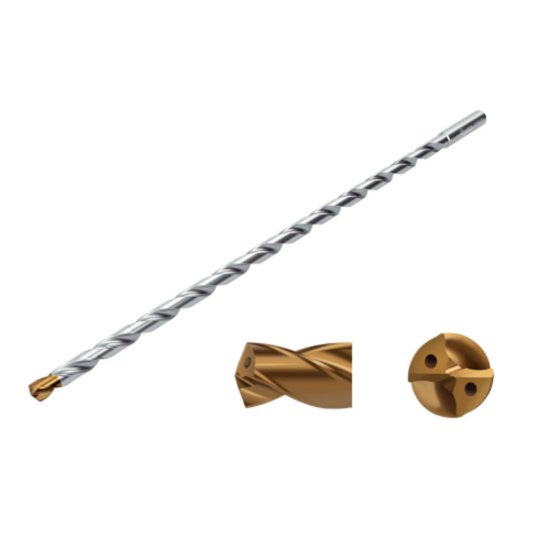

Picture of Widin SF51604763 4.763 - 3/16 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Widin SF51604763 4.763 - 3/16 Dia 140° Point 2 Flute 16XD Drill Carbide Thru Coolant

Part Number: WIDSF51604763
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$131.46
SKU: 1144307

Description

WIDIN SF51604763 Deep Hole Over 8Xd 4.763 - 3/16 DIA 140° Point 2 Flute 16XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.1969 132.00MM
Flute Length 3.6220 92.00MM
Dia Deep 16.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.1875 4.76MM - 3/16
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1875 4.76MM - 3/16
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
