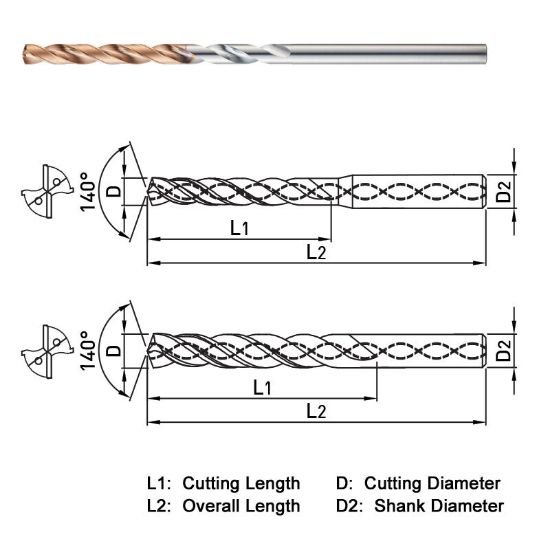

Picture of Widin SF510087 8.70mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Widin SF510087 8.70mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Part Number: WIDSF510087
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$265.16
SKU: 1143785

Description

WIDIN SF510087 Deep Hole Over 8Xd 8.70MM DIA 140° Point 2 Flute 10XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.8110 173.00MM
Shank/Pilot Dia 0.3543 9.00MM
Flutes/Inserts 2
Tool Dia 0.3425 8.70MM
Flute Length 4.6460 118.01MM
Dia Deep 10.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.3425 8.70MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
