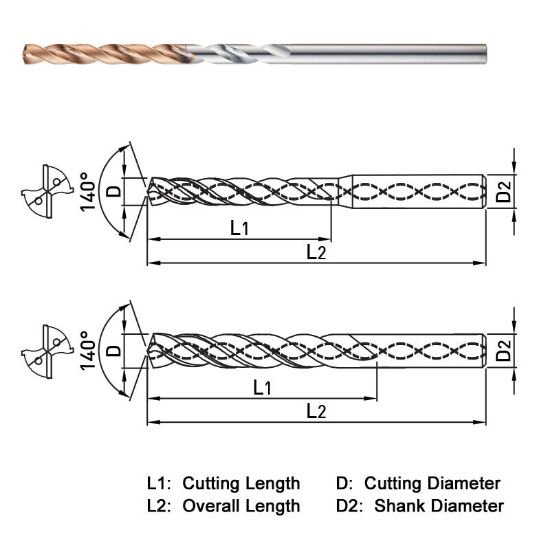

Picture of Widin SF510066 6.60mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Widin SF510066 6.60mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Part Number: WIDSF510066
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$160.80
SKU: 1143764

Description

WIDIN SF510066 Deep Hole Over 8Xd 6.60MM DIA 140° Point 2 Flute 10XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.7087 145.00MM
Flute Length 3.6220 92.00MM
Dia Deep 10.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2756 7.00MM
Tool Dia 0.2598 6.60MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2598 6.60MM
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
