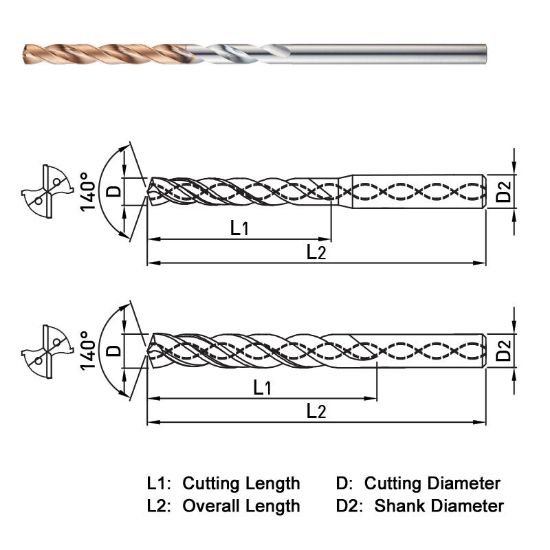

Picture of Widin SF510053 5.30mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Widin SF510053 5.30mm Dia 140° Point 2 Flute 10XD Drill Carbide Thru Coolant

Part Number: WIDSF510053
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$125.53
SKU: 1143751

Description

WIDIN SF510053 Deep Hole Over 8Xd 5.30MM DIA 140° Point 2 Flute 10XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.8425 123.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2086 5.30MM
Flute Length 2.8350 72.01MM
Dia Deep 10.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.2086 5.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
