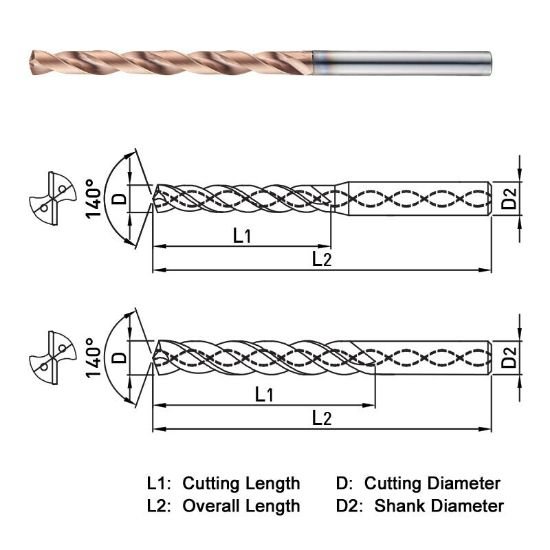

Picture of Widin SF508150 15.00mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF508150 15.00mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF508150
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$423.61
SKU: 1144453

Description

WIDIN SF508150 Carbide Drill 15.00MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.0315 204.00MM
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Flute Length 5.9840 151.99MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Cut Dia Min 0.5906 15.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
