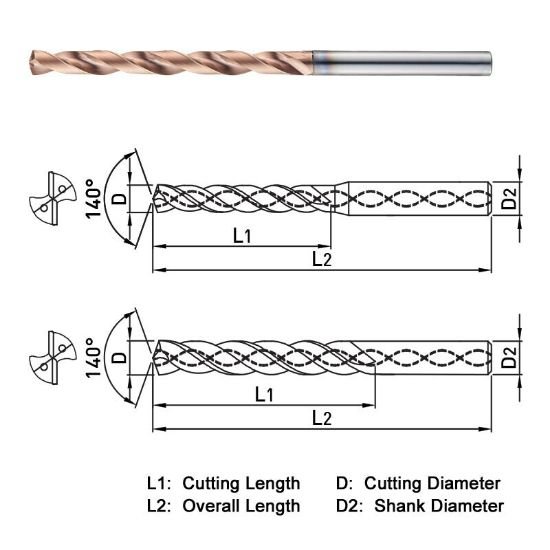

Picture of Widin SF50814288 14.288 - 9/16 Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin SF50814288 14.288 - 9/16 Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDSF50814288
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$423.61
SKU: 1144449

Description

WIDIN SF50814288 Carbide Drill 14.288 - 9/16 DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.0315 204.00MM
Flute Length 5.9840 151.99MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5906 15.00MM
Tool Dia 0.5625 14.29MM - 9/16
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.5625 14.29MM - 9/16
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
