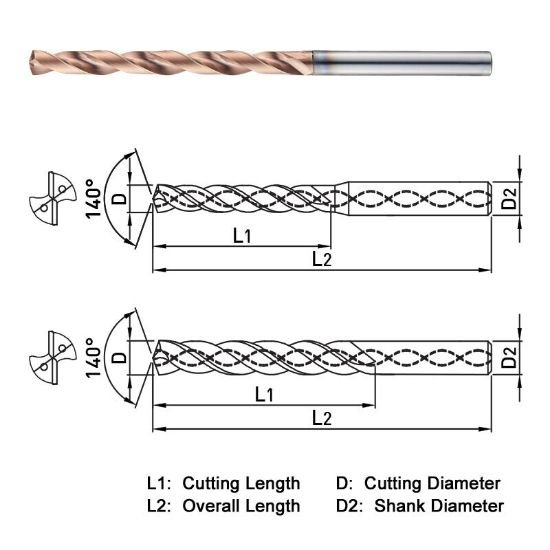

Widin SF50814287 14.287mm Dia 140° Point 2 Flute 8XD Drill

Part Number: WIDSF50814287
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1144473
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

WIDIN SF50814287 Carbide Drill 14.287MM DIA 140° POINT 2 FLUTE 8XD DRILL Coolant Thru AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Gray Iron, Ductile Iron, >50HRC Steel
Coating ALTIN
Mach Side Connection Size 0.5906 15.00MM
Overall Length 8.0315 204.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5906 15.00MM
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Included Angle 140°
Flute Length 5.9840 151.99MM
Cut Dia Min 0.5625 14.29MM - 9/16
Dia Deep 8.0x Dia
