WIDIN NDPR185 18.50MM DIA 140° Point 2 Flute 5.5-7.5XD Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDNDPR185
Delivery date: 3-5 days
$167.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating PVD
Made In USA No
Application Dilling, Drilling Flood Coolant
Shipping State Illinois

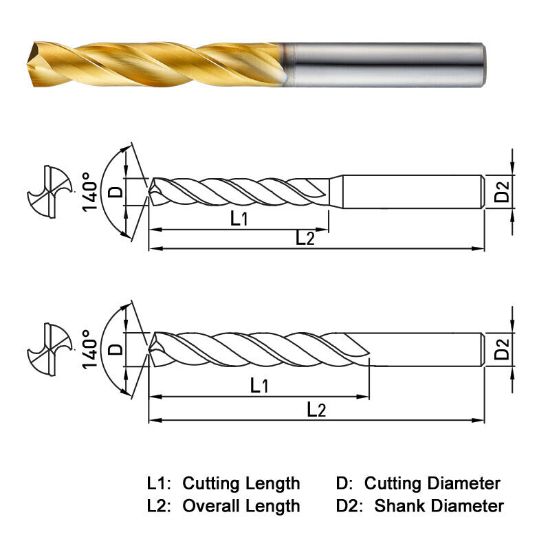

Dimensional Specifications
Overall Len 5.0000 127.00MM
Cut Dia Min 0.7283 18.50MM
Shank/Pilot Dia 0.7480 19.00MM
Flutes/Inserts 2
Dia Deep 5.5XD-7.5XD
Flute Length 2.9920 76.00MM
Included Angle 140°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutter Dia 0.7283 18.50MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7480 19.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
